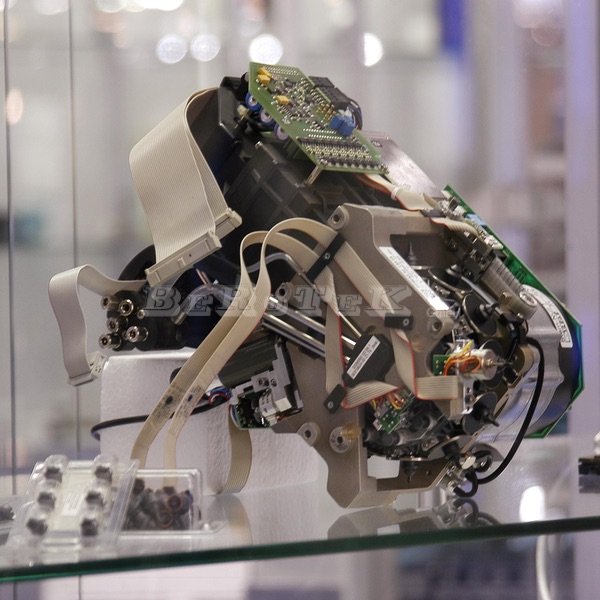

C&P DLM2 HEAD 12-fold MAINTENANCE

Front of the head

• Raceway
• Z-axis guide
• Blowing unit tubing
• distributor plate
• scanning unit
• Z-axis drive
• deflection bearing

Back of the head

• rotary actuator
• timing belt
• O-ring
• Star brake
• Valve actuator assembly circuit/ejection circuit
• Vacuum generator
• Distributor

Star

• connecting hose
• corner piece
• air supply
• valves
• Sled segment guide
• Valve tappet
• Radial engine

Adjustment work

• valve actuators
• Determine Npk. S-axis, note position on head (specified in digits)
• Npk. Z-axis, note position on head (specified in digits)
• Dynamic balancing of all axes

Functional test

• Head endurance run (1 hour) with video for the customer
• Vacuum test with pipette 714 (values in mbar)
• Segment offset 1 and segment offset 2
• Calibrate RV head
• Test assembly on aluminum plate (0402)

Spare part number: 00367770-02
